Heat pump thermostat setup: easy steps for efficiency

Homeowner installing thermostat in living room

by | Mar 28, 2026 | Articles

Your heat pump is running, but the house still feels too cold in January and your hydro bill keeps climbing. Sound familiar? The culprit is often not the equipment itself but a thermostat that was never set up correctly for a heat pump system. Unlike a standard furnace thermostat, a heat pump thermostat has unique wiring terminals, polarity settings, and mode configurations that directly affect your comfort and monthly costs. This guide walks you through everything you need: what to gather, how to wire and install, how to configure your settings, and how to catch mistakes before they cost you.

Table of Contents

Key Takeaways

Point Details
Safety comes first Always turn off power and label wires before starting to avoid shocks and costly mistakes.
Smart setup saves money Configuring balance, lockouts, and run time on your thermostat prevents expensive auxiliary heat use.
Correct wiring matters Properly matching and connecting wires ensures your heat pump delivers both heating and cooling as intended.
Optimal placement Install your thermostat centrally, away from temperature extremes, for most accurate readings.
Troubleshooting prevents headaches Catching errors early avoids breakdowns and surprise power bills.

What you need for heat pump thermostat setup

Before you touch a single wire, gather your materials and understand what makes heat pump wiring different from a standard heating system. A heat pump thermostat uses several dedicated terminals that a furnace thermostat simply does not have.

According to specific wiring requirements, heat pump thermostats require terminals including R (power), C (common), Y (compressor), G (fan), O/B (reversing valve), and W/Aux/E (auxiliary or emergency heat). Always turn off power at the breaker before touching any wiring. Our heat pump wiring guide covers Canadian-specific configurations in detail.

Here is a quick comparison of thermostat types so you know what you are working with:

Feature Standard thermostat Heat pump thermostat
O/B terminal No Yes (reversing valve)
Aux/E heat terminal No Yes
C-wire needed Sometimes Almost always
Mode configuration Heat/Cool Heat pump mode required
Complexity Low Moderate

For tools, you will need:

  • A flathead and Phillips screwdriver
  • A non-contact voltage tester (check thermostat voltage safety before you start)
  • Masking tape and a marker for labelling wires
  • Your smartphone to photograph the existing wiring
  • The new thermostat manual

The C-wire (common wire) deserves special attention. Smart thermostats like Nest or Ecobee need it for continuous power. Without it, you may experience erratic behaviour or the thermostat may not function at all. Check your existing wiring before purchasing a new unit.

For placement, mount your thermostat on an interior wall, roughly 1.5 metres high, away from windows, exterior doors, sunny spots, and kitchen appliances. Poor placement causes the thermostat to misread your home’s actual temperature. Our thermostat placement tips explain exactly where to mount for the most accurate readings.

Pro Tip: Before removing your old thermostat, take three photos of the wiring from different angles. Label every wire with tape before disconnecting anything. This five-minute step prevents hours of confusion later.

Step-by-step: Installing and wiring your heat pump thermostat

With your materials ready and the power off, the installation itself is straightforward if you follow each step in order. Most homeowners complete this in 30 to 60 minutes.

Here is the full process:

  1. Turn off power at the breaker panel. Confirm with your voltage tester at the thermostat wires.
  2. Remove the old thermostat and photograph all wire connections before touching anything.
  3. Label every wire with masking tape: R, C, Y, G, O/B, W/Aux, and any others present.
  4. Mount the new base plate to the wall, feeding wires through the centre opening.
  5. Connect each wire to its matching terminal on the new thermostat base.
  6. Set heat pump mode in the thermostat menu. This is a critical step many people skip.
  7. Configure O/B polarity: O energises during cooling (most common in Canada), B energises during heating. Check your system documentation.
  8. Restore power and test heating mode, cooling mode, and auxiliary heat separately.

The installation steps above follow industry-standard practice for heat pump setups. Review wiring mistakes to avoid before you begin if this is your first time.

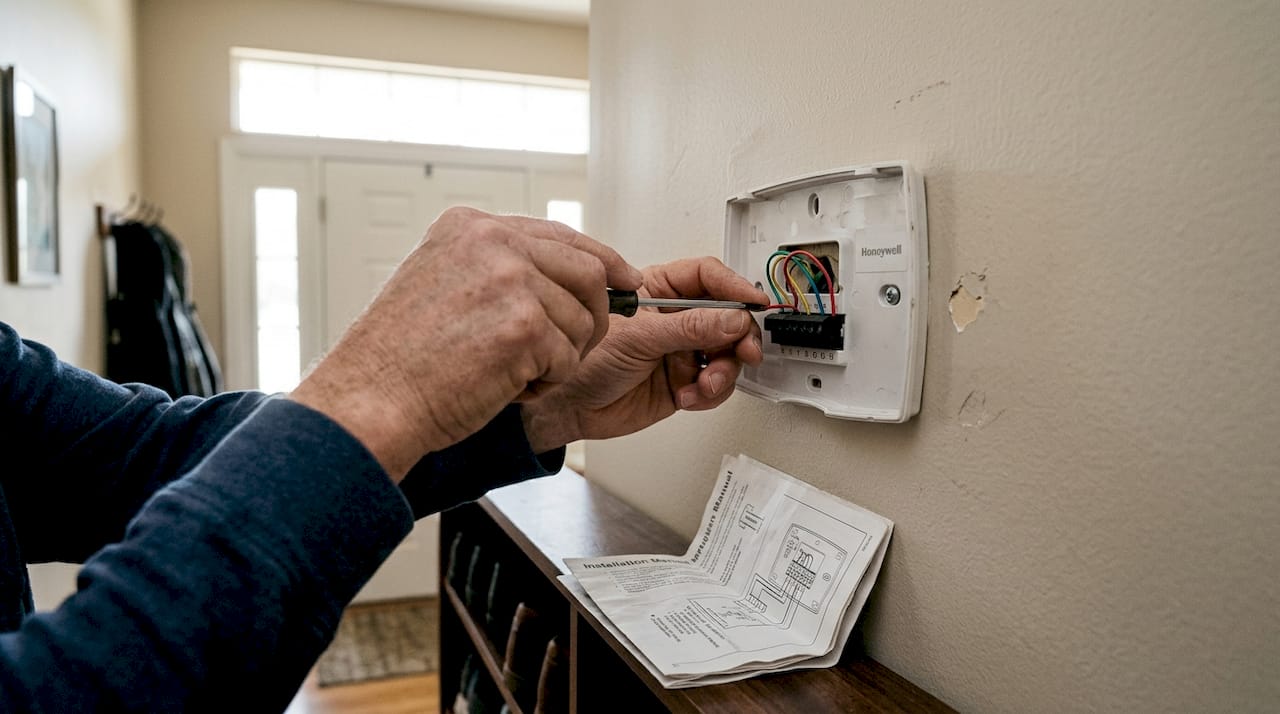

Hands adjusting wires on heat pump thermostat

Here is a quick reference for common wire colours and their terminals:

Wire colour Typical terminal Function
Red R 24V power
Blue or Black C Common (return)
Yellow Y Compressor
Green G Fan
Orange O Reversing valve (cooling)
White W/Aux Auxiliary or emergency heat

Note that wire colours are not always consistent. Always go by the label, not the colour.

Pro Tip: If your system has no C-wire, do not guess. A C-wire adapter kit can solve the problem, but some systems need a professional to run a new wire. Skipping this step causes smart thermostat failures.

If you encounter wire codes you do not recognise, or if your system has more than six wires, stop and call a technician. DIY wiring carries real risk for non-standard setups or smart thermostats without a C-wire. Our full replacement process guide covers more complex scenarios.

Configuring your settings for comfort and efficiency

Physical installation is only half the job. The settings you programme into your thermostat determine whether your heat pump runs efficiently or burns through electricity trying to keep up.

Start with these key settings:

  • Heat pump mode: Must be enabled. Without it, the thermostat treats your system like a furnace.
  • O/B polarity: Match to your system (O for cooling is standard in most Canadian installations).
  • Compressor minimum run time: Set to 5 to 10 minutes to prevent short cycling, which wears out the compressor.
  • Deadband: A 0.5 to 1°C gap between heating and cooling setpoints stops the system from switching back and forth.
  • Auxiliary heat lockout: Set between 1°C and 4°C so auxiliary heat only kicks in during genuine cold snaps.
  • Eco or Away mode: Enable this so the thermostat adjusts automatically when you leave home.

For Nest users specifically, Nest heat pump settings include a Heat Pump Balance feature (choose Balanced or Max Comfort), a compressor minimum on time of 5 to 10 minutes, and an auxiliary lockout around 1°C to 4°C. These settings prevent the system from over-relying on expensive electric resistance heat.

Smart thermostats like Nest and Honeywell optimise via balance settings and energy history tracking, which lets you refine your schedule over time based on real usage data.

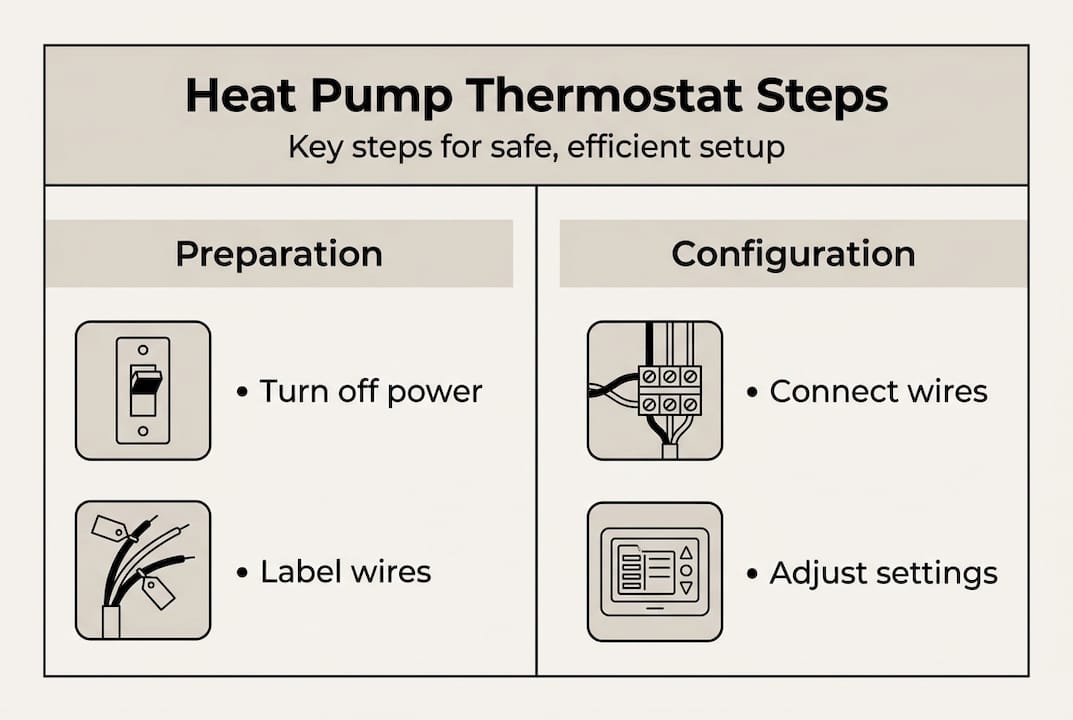

Infographic of heat pump thermostat setup steps

One setting that catches many Canadian homeowners off guard: avoid leaving your thermostat in Auto mode during winter. In Auto, the system can switch to cooling if the indoor temperature rises slightly on a sunny afternoon, which is both wasteful and uncomfortable. Set it to Heat only from November through March.

For ongoing savings, check out our guides on boosting heat pump efficiency and saving energy with heat pumps to build on what you configure today.

Pro Tip: After your first full week of operation, review the energy history on your smart thermostat app. If auxiliary heat is running daily, your lockout temperature is set too high. Lower it by 1°C and check again the following week.

Troubleshooting and avoiding common thermostat setup mistakes

Even a careful installation can have small errors that show up as big problems. Knowing what to look for saves you from a surprise bill or a service call.

Watch for these warning signs:

  • Only the fan runs: The thermostat may not be in heat pump mode, or the Y wire is loose.
  • System heats when it should cool: O/B polarity is reversed. Go back into settings and flip it.
  • Auxiliary heat runs constantly: Your lockout temperature is too high, or the heat pump itself has a fault.
  • Thermostat reads wrong temperature: Placement is the issue. Check for nearby drafts, appliances, or direct sunlight.
  • Short cycling (system turns on and off rapidly): Compressor minimum run time is not set, or the deadband is too narrow.

The 20-degree rule is a useful guideline: keep your setpoint within about 11°C of the outdoor temperature. Asking your heat pump to maintain 22°C indoors when it is minus 25°C outside without proper auxiliary settings is a recipe for high bills and equipment strain. Auxiliary and emergency heat should only run in extreme cold, typically below minus 1°C to minus 2°C for standard heat pumps, and lower for cold-climate models.

For placement, revisit our thermostat location guidance if you suspect your thermostat is reading temperatures inaccurately. A thermostat placed near a cold exterior wall or a sunny window will constantly fight against a false reading.

Common mistakes that are easy to avoid:

  • Forgetting to label wires before disconnecting the old thermostat
  • Leaving the breaker on while wiring
  • Skipping the O/B polarity check after installation
  • Setting auxiliary lockout too high, causing it to run in mild weather
  • Not testing all three modes (heating, cooling, auxiliary) before calling the job done

For deeper issues, our advanced troubleshooting guide covers fault codes, refrigerant concerns, and when a technician is the right call.

Ready to get your heat pump running right?

Setting up a heat pump thermostat correctly makes a real difference in your comfort and your energy costs. But sometimes the wiring is more complex than expected, or the system has quirks that need a trained eye.

https://coolfix.ca

At CoolFix, we specialise in heat pump installation and appliance repair across Canada. Whether you need a full thermostat installation, a wiring check, or a system tune-up, our technicians know heat pump systems inside and out. We work with all major brands and handle both standard and cold-climate setups. If your thermostat setup is not delivering the comfort and savings you expected, we are here to help. Visit coolfix.ca to book a service call or get answers from our team.

Frequently asked questions

Do I need a C-wire for my heat pump thermostat?

Most smart thermostats require a C-wire for continuous power, though adapter kits are available if your existing wiring does not include one.

What is the O/B wire and why does it matter?

The O/B wire controls the reversing valve that switches your heat pump between heating and cooling. O/B configuration varies by system: O energises during cooling in most Canadian setups, while B energises during heating.

How can I prevent auxiliary heat from running too much?

Set an auxiliary heat lockout temperature in your thermostat settings. Aux lockout for standard systems is typically around minus 1°C to minus 2°C, and lower for cold-climate heat pumps.

Is it safe to install a heat pump thermostat myself?

A standard installation is manageable for most homeowners, but DIY wiring carries risk for non-standard setups or when a C-wire is missing. When in doubt, call a licensed technician.
