Heat pump refrigeration cycle: efficient home comfort

Homeowner cleaning heat pump vent in living room

by | Mar 27, 2026 | Articles

Many Canadian homeowners assume heat pumps are too complicated to understand or too fragile to handle a Canadian winter. That assumption costs money. Heat pumps vs conventional HVAC shows that this misconception is widespread, yet modern heat pumps are among the most reliable and efficient systems available for year-round comfort. Understanding how the refrigeration cycle works is not just for technicians. When you grasp the basics, you can spot problems early, communicate clearly with repair professionals, and make smarter decisions about maintenance and upgrades.

Table of Contents

Key Takeaways

Point Details
Cycle basics A heat pump refrigeration cycle efficiently transfers heat for both winter heating and summer cooling.
Core components Evaporator, compressor, condenser, and expansion valve make the process possible.
Energy savings Heat pumps can reduce home heating bills by up to 25% with routine maintenance.
Troubleshooting Recognise common problems early to avoid costly repairs and ensure reliable comfort.
Expert help Certified technicians provide support for complex repairs or maximum efficiency upgrades.

What is the heat pump refrigeration cycle?

A heat pump does not create heat the way a furnace does. Instead, it moves heat from one place to another, which is why heat pump energy efficiency is so much higher than traditional systems. The refrigeration cycle is the continuous loop that makes this possible, and it relies on four core components working together.

The four main components:

  • Evaporator: Absorbs heat from the surrounding air or ground into the refrigerant.
  • Compressor: Pressurises the refrigerant, raising its temperature significantly.
  • Condenser: Releases the collected heat into your home (or outside, during cooling mode).
  • Expansion valve: Drops the pressure of the refrigerant, cooling it rapidly so the cycle can begin again.

The refrigerant travels through these components in a continuous loop. It absorbs heat as a low-pressure liquid, becomes a high-pressure gas after compression, releases that heat at the condenser, and then expands back to a cool liquid. This is how how heat pumps work is described by Natural Resources Canada, and it is the foundation of every heat pump system in use today.

Component Refrigerant state Approximate temperature Pressure
Evaporator Low-pressure liquid to gas -10°C to 10°C Low
Compressor Gas 60°C to 90°C Rising
Condenser High-pressure gas to liquid 40°C to 60°C High
Expansion valve Liquid -15°C to 5°C Dropping

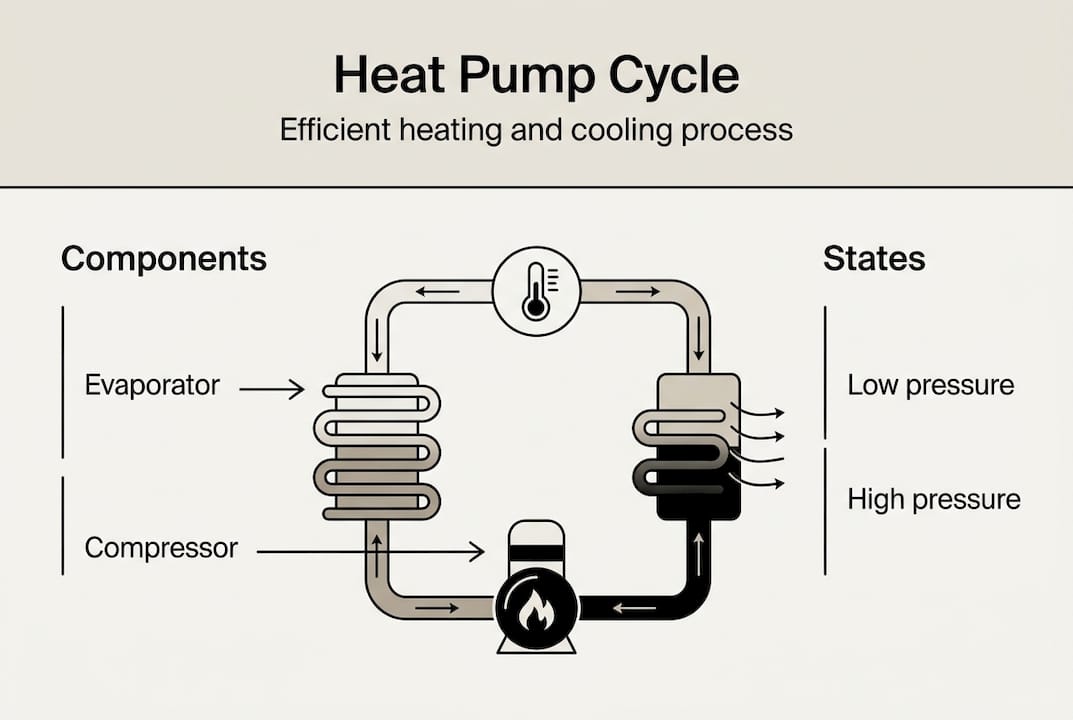

Infographic heat pump cycle key parts and states

Pro Tip: Keeping the evaporator and condenser coils clean is the single most effective maintenance habit you can build. Dirty coils force the system to work harder, which raises your energy bill and shortens the lifespan of the compressor.

Step-by-step breakdown of the cycle

With a strong overview in place, here is a closer look at what is happening inside your heat pump at each stage.

  1. Evaporation: The refrigerant enters the evaporator as a cool, low-pressure liquid. It absorbs heat from the outdoor air (even in cold weather, there is usable heat in the air) and evaporates into a gas. If you notice ice forming on the outdoor unit, this stage is often where the problem begins, usually due to restricted airflow or low refrigerant.

  2. Compression: The gaseous refrigerant moves into the compressor, which squeezes it into a high-pressure, high-temperature gas. A noisy compressor is a red flag. Grinding or rattling sounds often point to worn bearings or refrigerant issues that need professional attention.

  3. Condensation: The hot, pressurised gas flows into the condenser, where it releases its heat into your home. The refrigerant cools and condenses back into a liquid. If your home is not warming up properly, a fouled condenser coil is a common culprit.

  4. Expansion: The liquid refrigerant passes through the expansion valve, which drops its pressure rapidly. This cools the refrigerant back down so it is ready to absorb heat again. Understanding each phase of the cycle makes troubleshooting far more straightforward for both homeowners and technicians.

Pro Tip: Technicians frequently trace performance problems back to the expansion valve. Before calling for a repair, check whether your air filters are clean and airflow is unobstructed. Restricted airflow is the most common cause of expansion valve stress and can be fixed in minutes.

Heat pump refrigeration cycle vs traditional systems

You have seen the inner workings, but how does this system compare to a conventional furnace or central air conditioner?

Technician explaining heat pump and furnace differences

Feature Heat pump Gas furnace Central air conditioner
Energy source Electricity (moves heat) Natural gas (generates heat) Electricity (removes heat)
Heating function Yes Yes No
Cooling function Yes No Yes
Efficiency rating Up to 300% (COP 3.0) Up to 95% AFUE Up to 20 SEER
Maintenance complexity Moderate Moderate Moderate
Dual season use Yes No No

Key benefits of heat pumps over traditional systems:

  • One system handles both heating and cooling, reducing installation and maintenance costs.
  • Heat pump versus furnace efficiency shows heat pumps can reach up to 300% efficiency compared to 95% for gas furnaces.
  • Fewer combustion components mean lower risk of carbon monoxide issues.
  • Eligible for Canadian government rebates and Energy Star heat pump incentive programmes.
  • Quieter operation compared to forced-air furnace systems.

“A heat pump moves heat instead of generating it, which makes it more efficient than virtually any combustion-based system.”

That said, there are situations where a furnace still makes sense. In regions with extremely prolonged temperatures below -25°C, a dual-fuel system pairing a heat pump with a gas furnace backup can be the most practical choice. If your current system is ageing, reviewing when to replace heat pumps can help you decide whether repair or replacement is the smarter investment.

Common issues and quick troubleshooting tips

Knowing your system also means catching potential problems before they get out of hand.

  • Poor airflow: Check and replace filters first. Blocked return vents are a surprisingly common cause of reduced performance.
  • Ice build-up on the outdoor unit: Some frost is normal in winter, but thick ice indicates a defrost cycle failure or low refrigerant. Do not chip the ice manually.
  • Short cycling (system turns on and off rapidly): Often caused by an oversized unit, a refrigerant leak, or a faulty thermostat. This puts enormous strain on the compressor.
  • Unusual noises: Squealing suggests a belt or bearing issue. Banging or clanking points to a loose or broken component inside the compressor.
  • Low heat output: Could be a dirty coil, low refrigerant, or a failing reversing valve. The reversing valve is what allows the system to switch between heating and cooling modes.

Routine heat pump maintenance can prevent up to 25% of heat pump failures, which means most of the issues above are avoidable with consistent upkeep. For a structured approach, the maintenance checklist for heat pumps is a practical resource to keep on hand. If you are unsure whether a problem is DIY-friendly, err on the side of calling a certified technician. Refrigerant handling, in particular, requires a licensed professional in Canada.

Maximising efficiency and prolonging lifespan

Catching issues early makes a big difference, but ongoing habits matter even more for Canadian homeowners dealing with snowy winters and humid summers.

  1. Change filters every 1 to 3 months. A clogged filter is the fastest way to reduce efficiency and strain the blower motor.
  2. Clean the outdoor coil each spring. Remove debris, leaves, and any ice residue from the winter season.
  3. Check the thermostat calibration annually. An inaccurate thermostat causes the system to run longer than necessary.
  4. Clear snow and ice from the outdoor unit promptly. Blocked airflow in winter forces the system into extended defrost cycles.
  5. Book a professional inspection once a year. A technician can check refrigerant levels, electrical connections, and the condition of the compressor.
  6. Explore zoning for maximum comfort. Zoning systems allow you to heat or cool only the areas of your home that need it, cutting energy waste significantly.

Stat callout: Following annual maintenance and simple seasonal adjustments can maximise heat pump lifespan by up to 40% and reduce energy costs by up to 25%. For Canadian property managers overseeing multiple units, that adds up to substantial savings across an entire portfolio. Regional rebates from provincial programmes and federal incentives make proactive maintenance even more financially attractive in 2026.

Need expert help with your heat pump?

Sometimes a problem goes beyond what a filter change or coil cleaning can fix, and that is exactly where professional support makes all the difference.

https://coolfix.ca

At CoolFix, we specialise in heat pump installation, repair, and maintenance for Canadian homeowners and property managers. Whether you need a straightforward tune-up or a full system replacement, our certified technicians respond quickly and work with your schedule. Our replacement tutorial for homeowners is a great starting point if you are weighing your options, and our guide to choosing repair services helps you ask the right questions before any technician arrives. For a full overview of what we offer, visit our full appliance repair services page and see how we can help you get the most from your system.

Frequently asked questions

How does a heat pump differ from an air conditioner?

A heat pump can both heat and cool by reversing its refrigeration cycle, while an air conditioner only removes heat from your home. This reversible cycle makes the heat pump a far more versatile investment for Canadian climates.

Will a heat pump work efficiently in Canadian winters?

Modern heat pumps are engineered for cold climates and maintain strong performance well below freezing. Advanced designs deliver reliable efficiency even at low temperatures, especially when the system is properly maintained.

What maintenance does my heat pump need each year?

Annual maintenance includes changing filters, cleaning coils, and checking the thermostat. Regular maintenance is the most reliable way to protect efficiency and extend the life of your system.

How can I tell if my heat pump has a problem?

Unusual noises, ice on the coils, or a noticeable drop in heating or cooling output are the most common warning signs. Early warning signs like these indicate issues that are much easier and cheaper to fix when caught quickly.
