Heat Pump Load Calculation: Master 12% Energy Savings

Technician reviewing load calculations at cluttered table

by | Feb 28, 2026 | Articles

Many HVAC technicians still rely on outdated square footage rules for sizing heat pumps, which leads to costly inefficiencies and uncomfortable homes. Canadian climates demand precision, from extreme prairie winters to humid coastal conditions. This guide equips you with proven load calculation methods using CSA F280-12 and Manual J standards, ensuring optimal system performance and rebate eligibility for every installation.

Table of Contents

Key Takeaways

Point Details
Proper load calculation prevents oversizing and undersizing issues Accurate sizing eliminates efficiency loss, humidity problems, and premature equipment failure.
CSA F280-12 and Manual J are essential standards for Canadian calculations Both methods ensure compliance with building codes and rebate programs across provinces.
Climate variation greatly influences heat pump sizing requirements Design temperatures range from Region 1 mild zones to Region 7 extreme cold, requiring tailored approaches.
Accurate, room-by-room calculations yield better comfort and efficiency Detailed analysis enables proper zoning and eliminates hot or cold spots in homes.
Compliance with regulations enables rebate eligibility Documented calculations using certified methods unlock federal and provincial incentive programs.

Introduction to Heat Pump Load Calculation

Heat pump load calculation determines the exact heating and cooling capacity your system needs to maintain comfort throughout the year. This process involves analyzing building characteristics, occupant behavior, and local climate data to specify the right equipment size. Getting this wrong costs your customers money and damages your professional reputation.

Oversized systems cycle on and off too frequently, wasting energy and failing to remove humidity during cooling season. Undersized units run continuously in extreme weather, struggling to maintain set temperatures and wearing out components faster. Both scenarios increase maintenance costs and shorten equipment lifespan by years.

Canadian climates present unique challenges that generic sizing approaches cannot address. Extreme cold in northern regions demands equipment capable of maintaining output at temperatures below freezing. High humidity in coastal areas requires careful attention to latent cooling loads. Thermal envelope quality varies dramatically between older homes and modern construction.

Two recognized calculation methods dominate the Canadian market. CSA F280-12 and Manual J standards provide systematic approaches for determining heat loads in residential buildings. The CSA F280-12 Standard and Manual J are recognized calculation methods for heat load determination in Canada, ensuring consistent and accurate sizing. Choosing the appropriate method depends on project type, regional requirements, and rebate program specifications.

Key factors influencing your calculations include:

  • Building envelope characteristics such as insulation levels, window quality, and air leakage rates
  • Occupancy patterns including number of residents, usage schedules, and internal heat gains
  • Local climate data including design temperatures, humidity levels, and seasonal variations
  • Equipment capabilities including capacity modulation ranges and efficiency ratings at various temperatures

Key Calculation Standards and Methodologies

Manual J remains the most widely recognized load calculation method across North America. Developed by the Air Conditioning Contractors of America, this standard provides detailed procedures for calculating heating and cooling loads room by room. The method requires precise measurements of building envelope components, occupancy information, and local climate data to produce accurate capacity requirements.

CSA F280-12 specifically addresses Canadian building conditions and regulatory requirements. This standard outlines procedures for determining design heat loss in residential buildings using Canadian climate zones and construction practices. F280 calculations are required by the BC Building Code for new home sizing compliance, making it mandatory for certain projects across western provinces.

The table below compares these two primary methodologies:

Feature Manual J CSA F280-12
Geographic Scope North American standard Canadian-specific standard
Regulatory Status Voluntary best practice Mandatory in BC new construction
Climate Data ASHRAE design temperatures Canadian climate zones
Calculation Focus Heating and cooling loads Heating load emphasis
Software Availability Widespread commercial options Limited certified tools
Rebate Alignment Accepted by most programs Required for some provincial rebates

The Natural Resources Canada toolkit provides additional guidance on applying these standards to air source heat pump projects. This resource includes climate zone maps, equipment performance data, and sizing worksheets tailored to Canadian conditions. Understanding regional variations helps you select the most appropriate calculation approach.

Both methods share common data requirements. You need accurate building dimensions, insulation R-values, window specifications, and infiltration rates. Climate inputs include outdoor design temperatures for heating and cooling, indoor set points, and humidity levels. The main difference lies in how each standard processes this information and applies safety factors.

Proper heat pump placement in Canada depends on accurate load calculations that account for equipment capabilities at various temperatures. Choose Manual J for retrofit projects where flexibility matters and CSA F280-12 for new construction requiring code compliance. Some projects benefit from running both calculations to validate results and identify potential sizing conflicts.

Pro Tip: Match your calculation method to project requirements early in the design phase. New construction in BC mandates F280 compliance, while retrofit projects across other provinces typically accept Manual J. When rebate eligibility matters, verify which method the program requires before starting your calculations.

Critical Factors Influencing Heat Pump Load

Insulation quality directly impacts heating and cooling loads by controlling heat transfer through walls, roofs, and floors. Older Canadian homes often have inadequate insulation by modern standards, with R-values well below current building code requirements. Air leakage compounds this problem, allowing conditioned air to escape and outside air to infiltrate. Blower door testing reveals actual infiltration rates rather than relying on estimated values.

Consultant inspecting attic insulation and ducts

Occupancy patterns create internal heat gains that offset heating loads and increase cooling requirements. A family of four generates more heat than a single occupant through body heat, appliances, and lighting. Work-from-home arrangements change load profiles throughout the day. Evening cooking activities spike internal gains during traditional peak heating hours.

Canadian climate zones range from mild coastal regions to extreme northern conditions. Design temperatures vary by over 30°C between southern Ontario and northern territories. Winter design temperatures determine heating capacity requirements, while summer conditions drive cooling needs. Room-by-room heat loss calculations provide superior zoning and comfort control compared to block load calculations.

Detailed room analysis reveals load distribution across the building. South-facing rooms gain solar heat during winter days, reducing heating requirements compared to north exposures. Upper floors typically need more cooling due to heat stratification. Basement spaces may require minimal heating in well-insulated homes. This granular data enables proper heat pump zoning techniques that match capacity to specific areas.

Location factors affecting heat pump load extend beyond simple geography. Coastal humidity impacts latent cooling loads and equipment selection. Wind exposure increases infiltration on certain building faces. Urban heat islands raise cooling loads in dense city centers. Snow accumulation patterns affect outdoor unit placement and defrost cycle frequency.

Room-by-room analysis provides these advantages:

  • Identifies specific areas with unique heating or cooling needs
  • Enables proper duct sizing and airflow distribution
  • Supports multi-zone system design for enhanced comfort
  • Reveals opportunities for envelope improvements before equipment sizing
  • Documents load diversity factors that reduce total system capacity requirements

Pro Tip: Update infiltration estimates using recent blower door test data whenever possible. Homes built before energy codes often leak 30% more air than assumed standard values. This single adjustment can change your calculated load by 15% or more, preventing undersizing in leaky homes.

Common Misconceptions and Errors in Load Calculation

Rule of thumb sizing methods persist despite decades of evidence showing their inadequacy. The old standard of 500 square feet per ton ignores insulation levels, window quality, climate zones, and occupancy factors. This crude approach typically oversizes equipment by 25% to 50%, wasting energy and creating comfort problems. Recognized calculation methods like Manual J or CSA F280-12 account for actual building characteristics.

Oversizing creates multiple performance issues beyond simple inefficiency. Short cycling prevents equipment from reaching steady state operation, reducing seasonal efficiency ratings. Oversizing leads to short cycling and insufficient dehumidification, particularly problematic during shoulder seasons when cooling loads remain moderate but humidity stays high. Frequent starts increase wear on compressors and contactors.

Oversized heat pumps cycle rapidly in mild weather, running for only minutes before shutting off. This prevents proper dehumidification during cooling mode, leaving homes feeling clammy despite meeting temperature set points. Equipment rated for 10,000 cycles may fail after 5 years instead of lasting 15 years.

Many technicians ignore humidity impacts when calculating cooling loads. Latent loads from moisture removal can represent 30% of total cooling requirements in humid climates. Coastal regions and areas near large water bodies experience elevated humidity levels that standard calculations may underestimate. Failing to account for this leaves customers with cold, damp spaces during summer.

Using non-certified or outdated software tools introduces calculation errors that compromise system performance. Free online calculators often use simplified assumptions that don’t match Canadian conditions. Spreadsheet tools without regular updates may reference obsolete climate data or equipment performance curves. Effects of oversizing heat pumps include both immediate comfort complaints and long-term reliability issues.

Correct heat pump placement requires accurate load data to ensure adequate airflow and capacity distribution. Common location errors often stem from using oversized equipment that creates uneven temperature distribution. Right-sized systems maintain consistent comfort across all zones.

Frequent calculation mistakes include:

  • Applying generic square footage multipliers instead of detailed analysis
  • Ignoring basement loads or treating them as unconditioned space
  • Using incorrect design temperatures from wrong climate zones
  • Failing to account for solar gains through large window areas
  • Overlooking internal gains from modern appliances and electronics
  • Adding excessive safety factors that compound oversizing

Tools, Software, and Professional Training

Canadian-certified load calculation software ensures compliance with national standards and provincial building codes. Programs like TECA Quality First and EnerGuide HOT2000 incorporate Canadian climate data, construction practices, and equipment performance characteristics. These tools streamline data entry, reduce calculation errors, and generate reports formatted for rebate applications and permit submissions.

Professional training courses provide hands-on experience applying calculation methods to real projects. Organizations like Heating, Refrigeration and Air Conditioning Institute of Canada offer certification programs covering Manual J, CSA F280-12, and related standards. Regular continuing education keeps your skills current as codes evolve and new equipment technologies emerge. Using verified Canadian load calculation tools and professional training improves accuracy and rebate eligibility.

Energy audit data significantly enhances calculation precision when available. Blower door test results reveal actual air leakage rates rather than estimated values. Thermal imaging identifies insulation gaps and thermal bridges. Utility bill analysis validates calculated loads against historical performance. Incorporating this measured data eliminates guesswork and produces more reliable sizing recommendations.

Documentation protocols matter for rebate programs and building permits. Most provincial and federal incentive programs require signed calculations from certified professionals. Reports must include building plans, envelope specifications, equipment selections, and detailed load summaries. Standardized formats speed approval processes and reduce back-and-forth with program administrators.

The Natural Resources Canada toolkit includes equipment selection guides that complement load calculations. This resource helps match calculated capacities to available equipment models while accounting for performance degradation at design temperatures. Professional energy advisor resources provide additional guidance on interpreting results and communicating recommendations to customers.

Mastering heat pump repair steps becomes easier when systems are properly sized from the start. Correctly matched equipment experiences fewer breakdowns and simpler diagnostics. Heat pump replacement tutorial content assumes accurate sizing to ensure successful outcomes.

Recommended professional development activities include:

  • Annual software updates and training on new features
  • Participation in industry webinars covering code changes
  • Hands-on workshops practicing calculation methods
  • Case study reviews analyzing sizing successes and failures
  • Peer reviews of calculations for quality assurance

Pro Tip: Schedule annual training refreshers even after initial certification. Building codes update every three years, equipment technologies evolve continuously, and calculation software adds new capabilities. Investing four hours annually in professional development prevents costly mistakes and maintains your competitive edge.

Regional Climate Considerations for Accurate Sizing

Canadian climate zones span seven distinct regions with dramatically different design conditions. Region 1 covers mild coastal areas like Vancouver with winter design temperatures around negative 5°C. Region 7 encompasses extreme northern locations experiencing negative 40°C or colder. This 35°C range fundamentally changes equipment selection and capacity requirements.

Design heating temperatures establish the outdoor conditions your system must overcome to maintain indoor comfort. These values represent the coldest temperature expected to occur for more than a few hours per year, typically based on 99% or 97.5% winter design conditions. Using incorrect design temperatures leads directly to undersized or oversized equipment.

Province/Territory Representative City Winter Design Temp (°C) Heating BTU/sq ft Range
British Columbia Vancouver -5 to -10 20-30
Alberta Calgary -25 to -30 35-45
Saskatchewan Regina -30 to -35 40-50
Manitoba Winnipeg -30 to -35 40-50
Ontario Toronto -15 to -20 30-40
Quebec Montreal -20 to -25 35-45
Atlantic Provinces Halifax -15 to -20 30-40
Northern Territories Yellowknife -35 to -45 50-65

Extreme cold challenges heat pump capacity and efficiency simultaneously. Equipment output decreases as outdoor temperatures drop, exactly when heating demand peaks. Cold climate heat pumps maintain better performance below negative 15°C compared to standard models, but all equipment eventually requires supplemental heat. Backup heating capacity calculations must account for this performance degradation.

High humidity regions face different challenges during cooling season. Coastal areas experience elevated moisture levels that increase latent cooling loads. Dehumidification requirements may dictate larger equipment sizes than sensible cooling alone would suggest. Proper humidity control prevents mold growth and maintains occupant comfort.

Northern and remote communities deal with limited service infrastructure and extreme conditions. Equipment must withstand harsh winter weather while remaining serviceable with available local expertise. Transportation costs favor smaller, lighter units when shipping to remote locations. Design conservatism increases slightly to reduce service call frequency.

Key regional considerations include:

  • Confirming design temperatures match your specific location, not just provincial averages
  • Adjusting for microclimate effects like wind exposure or urban heat islands
  • Accounting for elevation impacts on equipment performance and outdoor air density
  • Evaluating backup heat requirements for extreme cold climate zones
  • Considering seasonal humidity patterns in coastal and lakeside locations

Practical Step-by-Step Heat Pump Load Calculation

Beginning with accurate building measurements establishes the foundation for reliable calculations. Measure each room’s length, width, and ceiling height to determine conditioned floor area and volume. Document window and door dimensions including frame types and glazing specifications. Record wall, ceiling, and floor constructions noting insulation types and R-values. These measurements feed directly into heat transfer calculations.

Collecting envelope data requires attention to construction details that impact thermal performance. Identify wall assemblies including exterior cladding, sheathing, insulation, and interior finishes. Note ceiling insulation depth and type, whether blown-in, batt, or spray foam. Document basement or crawlspace conditions including insulation placement and moisture control measures. Window specifications should include frame materials, number of panes, gas fills, and Low-E coatings.

Choosing design temperatures appropriate to your location ensures calculations match real-world conditions. Reference ASHRAE climate data tables or Canadian climate zone maps to identify winter and summer design temperatures. Select 99% design conditions for heating and 1% conditions for cooling in most residential applications. Adjust for local microclimate effects like elevation, wind exposure, or proximity to water bodies.

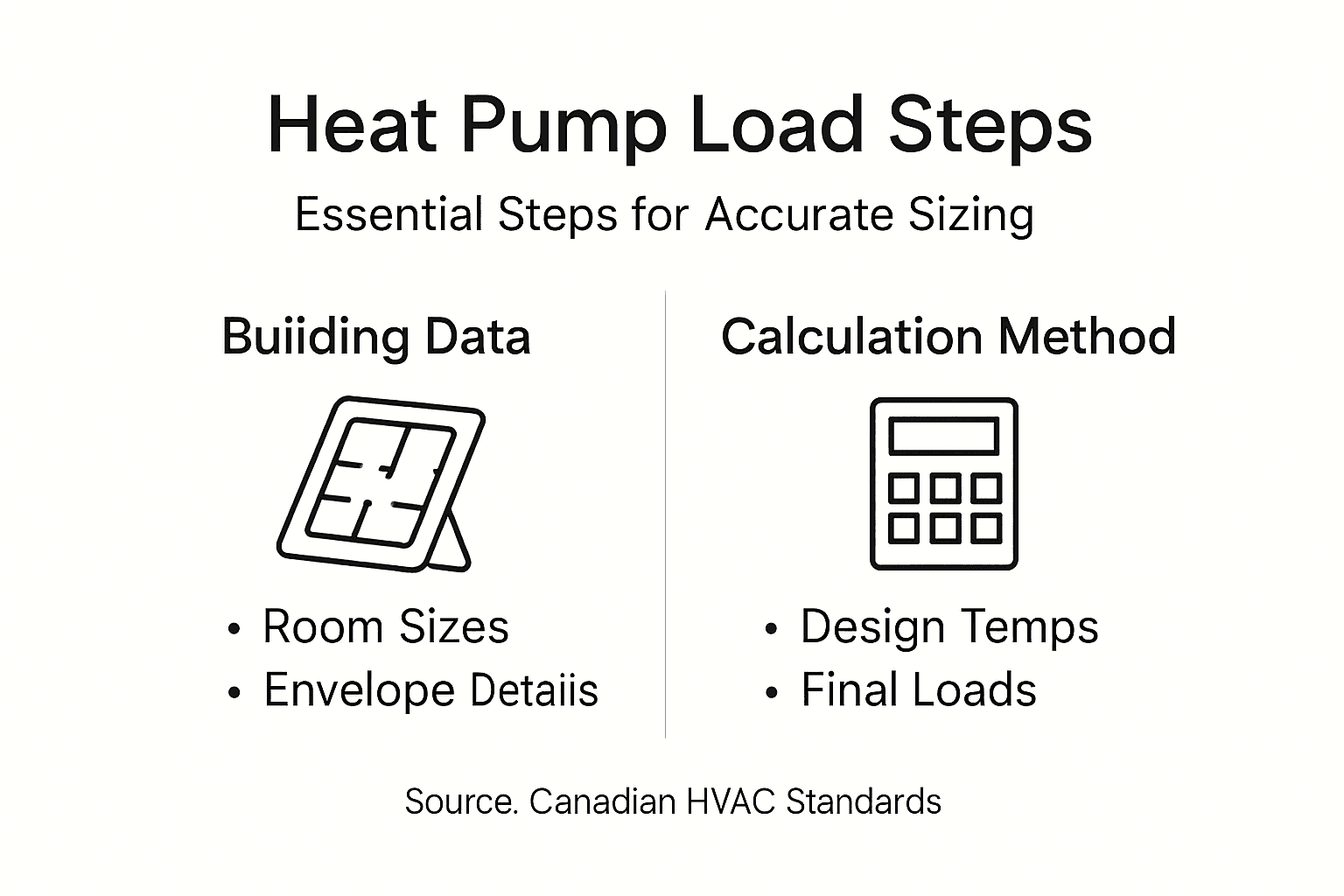

Infographic of main heat pump load steps

Applying Manual J or CSA F280-12 methodology systematically processes your collected data into heating and cooling loads. Input building dimensions and envelope specifications into certified software or follow standard calculation worksheets. Account for orientation-specific solar gains on different building faces. Include internal heat gains from occupants, lights, and appliances based on actual usage patterns. Software tools automate many calculations but verify results against reasonable benchmarks.

Room-by-room analysis reveals load distribution and enables proper system zoning. Calculate heating and cooling requirements for each space individually rather than using whole-house block loads. Identify rooms with unique characteristics like large window areas, cathedral ceilings, or limited insulation access. This detailed approach supports effective heat pump zoning techniques and equipment selection.

Validating results prevents costly sizing errors before equipment purchase. Compare your calculated loads to typical values for similar homes in your region. Total heating loads for well-insulated modern homes typically range from 25 to 45 BTU per square foot depending on climate zone. Values outside this range warrant double-checking inputs. Review calculations with experienced colleagues when results seem unusual.

  1. Measure all conditioned spaces recording dimensions, ceiling heights, and room volumes accurately
  2. Document envelope components including insulation R-values, window specifications, and infiltration estimates
  3. Identify design temperatures for both heating and cooling from appropriate climate data sources
  4. Apply recognized calculation standard using certified software or approved worksheets
  5. Perform detailed room-by-room load analysis rather than simplified block calculations
  6. Validate final results against typical values and industry benchmarks before equipment selection

Comprehensive heat pump replacement tutorial guidance relies on accurate load calculations to ensure proper equipment sizing. Following systematic heat pump repair workflow procedures becomes simpler when original installations used correct capacity.

Pro Tip: Incorporate blower door test data and energy efficient windows checklist information when available to refine infiltration estimates and window performance values. This measured data typically reduces calculated loads by 10% to 20% compared to default assumptions, preventing oversizing while maintaining adequate capacity.

Bridging Load Calculation to Installation Success

Selecting final equipment size requires balancing calculated loads against available equipment capacities. Manufacturers produce units in discrete sizes rather than exact matches to your calculated load. Choose equipment with nominal capacity at or slightly above your calculation, avoiding the temptation to significantly oversize for perceived safety. Modern variable-capacity units provide flexibility across wider operating ranges.

Effective customer communication explains sizing rationale in terms clients understand. Discuss how proper sizing delivers consistent comfort, lower operating costs, and extended equipment life compared to oversized alternatives. Share specific calculation results showing their home’s unique characteristics rather than generic rules of thumb. Address concerns about cold weather performance by explaining backup heat integration and cold climate equipment capabilities.

Documentation best practices ensure smooth rebate processing and code compliance. Maintain complete calculation files including all input assumptions, intermediate calculations, and final results. Generate reports formatted to program requirements with required certifications and signatures. Submit documentation promptly after installation to avoid missing program deadlines or changing requirements.

Troubleshooting sizing-related issues post-installation requires systematic diagnosis. Temperature complaints in specific rooms may indicate duct sizing errors rather than overall capacity problems. Short cycling suggests oversizing that calculations should have prevented. Continuous operation in moderate weather points to undersizing or envelope problems exceeding calculation assumptions. Heat pump troubleshooting guidance helps identify and resolve these issues efficiently.

Understanding heat pump installation timeline expectations helps manage customer relationships throughout the project. Accurate sizing established early prevents delays from equipment changes or capacity mismatches discovered during installation.

Critical installation success factors include:

  • Matching equipment capacity to calculated loads rather than applying arbitrary safety factors
  • Explaining technical sizing decisions using customer-friendly language and examples
  • Documenting all calculation inputs, methods, and results for future reference
  • Following manufacturer installation guidelines specific to selected equipment model
  • Verifying proper refrigerant charge and airflow after startup
  • Providing customers with operation guidance and realistic performance expectations

Boost Your HVAC Expertise with CoolFix Services

Mastering heat pump load calculation represents just one aspect of delivering exceptional HVAC services to Canadian customers. CoolFix provides comprehensive resources supporting technicians throughout installation, maintenance, and repair processes. Our heat pump replacement tutorial guides you through complete system changeouts with confidence.

https://coolfix.ca

Explore detailed technical guides covering every phase of heat pump service. Our heat pump installation timeline breaks down project phases from initial assessment through final commissioning. Reference our heat pump wiring guide when connecting electrical components to ensure code compliance and safe operation. These resources help you deliver professional results that build customer trust and referrals.

Frequently Asked Questions

What are the main factors that affect heat pump load calculation in Canadian homes?

Building envelope quality including insulation R-values and air leakage rates significantly impacts heating and cooling loads. Climate zone design temperatures, occupancy patterns, and internal heat gains from appliances also play major roles. Room-by-room analysis captures these variables more accurately than simplified whole-house estimates, enabling proper system sizing and zoning.

Why is oversizing a heat pump problematic despite modern modulation capabilities?

Oversized equipment cycles on and off too frequently, preventing systems from reaching stable operating conditions. This short cycling reduces seasonal efficiency ratings by 15% to 25% and accelerates component wear. Humidity control suffers during cooling mode because runtime remains insufficient for proper dehumidification, leaving homes feeling clammy despite meeting temperature set points.

How do CSA F280-12 and Manual J load calculation methods differ?

CSA F280-12 is mandatory for new construction in British Columbia and aligns specifically with Canadian building codes and climate data. Manual J provides broader North American applicability and works well for retrofit projects across all provinces. F280 offers stricter certification requirements and better alignment with provincial rebate programs, while Manual J enjoys wider software support and industry familiarity.

What tools and training resources improve heat pump load calculation accuracy?

Canadian-certified software like TECA Quality First or EnerGuide HOT2000 incorporates national climate data and construction practices. Professional training through organizations like HRAI provides hands-on experience applying calculation standards to real projects. Regular continuing education keeps skills current as building codes evolve and new equipment technologies emerge in the market.
