Heat pump insulation explained: maximise savings & efficiency

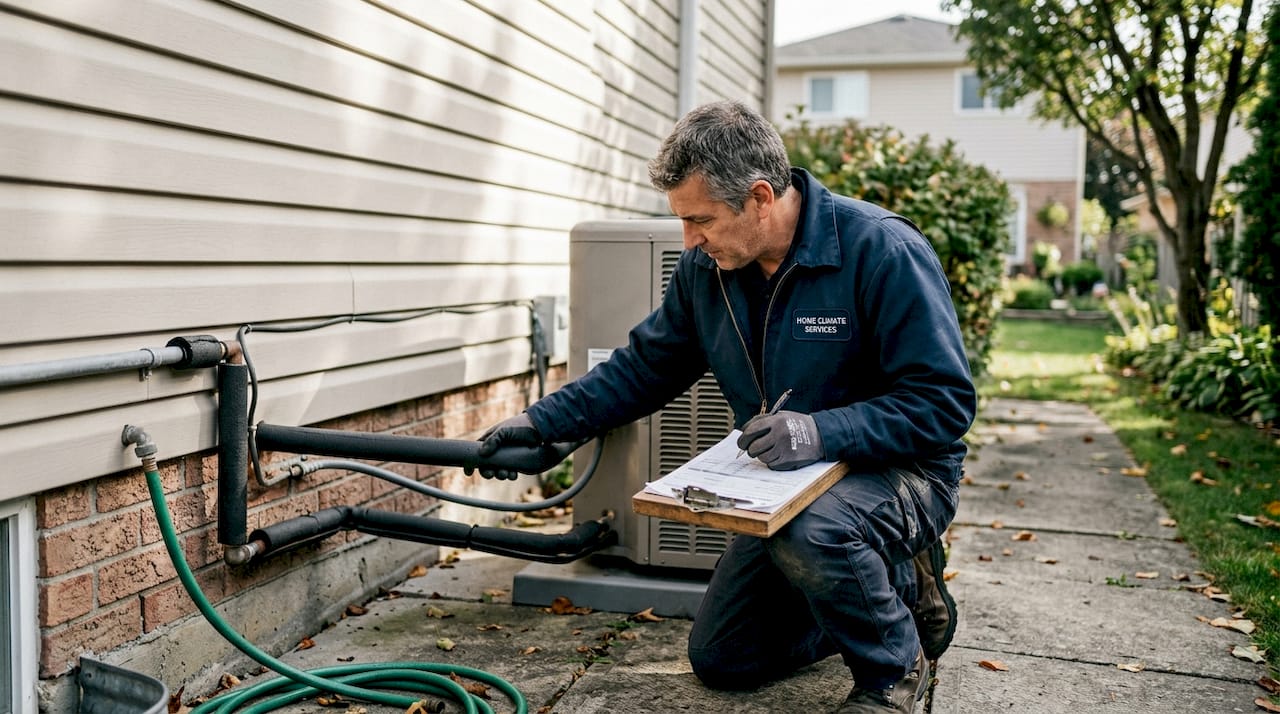

Technician checks heat pump pipe insulation outside house

by | Apr 5, 2026 | Articles

TL;DR:

  • Proper home insulation enhances heat pump efficiency by reducing heat loss and cycle times.
  • Insulating refrigerant pipes prevents energy loss and condensation, saving up to 20% energy.
  • Insulating and sealing the building envelope before installation maximizes performance and rebates.

A brand-new heat pump sitting in a poorly insulated home is a bit like buying a high-efficiency furnace and leaving the windows open all winter. The appliance works hard, your bills stay high, and you wonder why the upgrade did not deliver. Many homeowners assume that installing a modern heat pump is enough to slash heating costs, but insulation is just as critical as the unit itself. This guide breaks down exactly what heat pump insulation means, why it has such a dramatic effect on your comfort and energy bills, and how to get both your home and your pipes properly protected before or during your next installation.

Table of Contents

Key Takeaways

Point Details
Insulation is crucial A well-insulated home and insulated heat pump pipes are essential for saving energy and reducing heating costs.
Sequence affects results Insulating and sealing your home before installing a heat pump leads to the greatest efficiency and rebates.
Pipe insulation matters Refrigerant line insulation cuts 10–20% in energy losses and helps prevent expensive repairs.
Practical steps pay off Prioritise attic and air sealing, follow with wall and floor insulation, and consult experts for maximised results.

What is heat pump insulation and why does it matter?

The term “heat pump insulation” actually covers two distinct things, and confusing them is one of the most common mistakes homeowners make. Heat pump insulation primarily refers to two aspects: insulating the building envelope (walls, attic, floors) to reduce heat load and improve overall system efficiency, and insulating refrigerant pipes and lines to prevent energy loss, condensation, and system damage. Both matter enormously, and neglecting either one quietly undermines everything your heat pump is trying to do.

Think of your building envelope as the container your heat pump is trying to keep comfortable. If that container leaks heat freely through thin walls, a draughty attic, or uninsulated floors, your system has to run almost constantly just to keep up. Well-insulated homes allow a heat pump to operate in shorter, more efficient cycles, which is exactly what these systems are designed to do.

Refrigerant pipe insulation is a separate but equally important issue. The lines running between your indoor and outdoor units carry refrigerant at carefully controlled temperatures. Without proper insulation around those pipes, heat bleeds in or out depending on the season, forcing the compressor to work harder and raising your operating costs.

Here is a quick comparison of the two types:

Type What it protects Primary benefit
Building envelope insulation Walls, attic, floors, air sealing Reduces heat load on the system
Refrigerant pipe insulation Suction and liquid lines Prevents energy loss and condensation

Key reasons to prioritise both:

  • Comfort: A tight envelope means even temperatures throughout your home, not just near the vents.
  • Equipment life: Less runtime means less wear on the compressor and fan motors.
  • Cost savings: Reduced heat loss translates directly into lower monthly bills.
  • Rebate eligibility: Many Canadian incentive programmes require a minimum insulation standard before approving heat pump grants.

Following heat pump installation best practices means treating insulation as a prerequisite, not an afterthought. When both envelope and pipe insulation are in good shape, your heat pump can finally perform the way it was rated to.

How the right insulation boosts heat pump performance

Now that you know what heat pump insulation means, let’s see the real-world difference smart insulation makes.

Heat pumps are rated using efficiency metrics like COP (coefficient of performance), SEER (seasonal energy efficiency ratio), and HSPF (heating seasonal performance factor). A heat pump with a COP of 3 to 4 delivers three to four units of heat for every unit of electricity it consumes. That sounds impressive, and it is. But poor insulation causes rapid heat loss, forcing longer run times, short cycling, and reduced efficiency, with SEER and HSPF ratings dropping noticeably in leaky homes. Air sealing combined with insulation creates the tight thermal envelope those ratings actually assume.

The numbers from real-world data are striking. EPA estimates 15% savings on heating and cooling through attic and floor insulation combined with air sealing. A field study covering 1,023 heat pumps found that 17% of air-source units performed below standards, with poor insulation and oversizing accounting for roughly 10% of those cases. Proper insulation reduces the overall heat load by 20 to 40%, which directly improves COP and lowers your bill every single month.

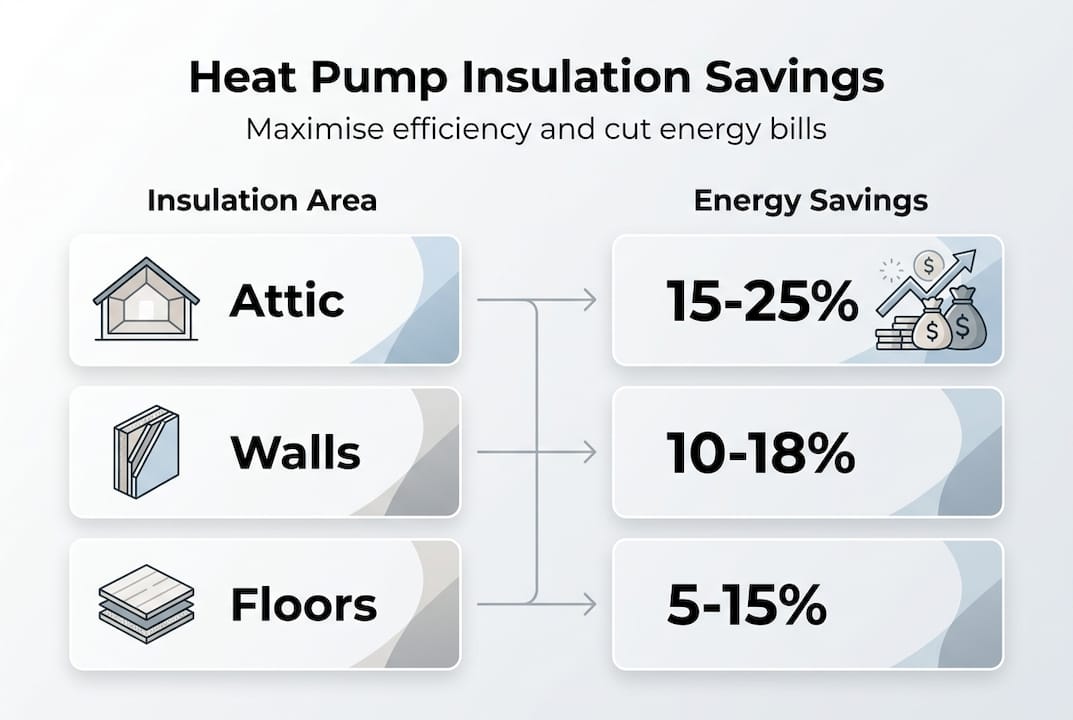

Infographic compares insulation areas with energy savings

Research on insulation and SCOP (seasonal coefficient of performance) further confirms that building fabric quality is one of the strongest predictors of real-world heat pump performance, often outweighing the brand or model of the unit itself.

Here is a breakdown of typical savings by insulation area:

Insulation area Estimated energy savings
Attic insulation and air sealing 15 to 25%
Wall insulation 5 to 15%
Floor and basement insulation 5 to 10%
Refrigerant pipe insulation 10 to 20%

What does insufficient insulation actually look like in practice? Your heat pump runs for very long stretches without reaching the set temperature. Your electricity bills climb despite having an efficient appliance. The system short-cycles in mild weather, which is hard on the compressor. Rooms far from the unit feel noticeably cooler or warmer than the thermostat setting.

Living room with running heat pump and relaxed occupant

Understanding heat pump efficiency explained in detail helps you connect these symptoms to their root cause. And if you are still weighing whether to upgrade to heat pumps, know that the upgrade pays off far more reliably in a well-insulated home.

Key methods: Building envelope vs. pipe insulation

With the importance and impact established, here’s how to approach insulation hands-on.

The single best starting point is a home energy audit. A certified energy adviser will use a blower door test to measure air leakage and identify exactly where your home is losing the most heat. This takes the guesswork out of where to spend your money first.

Here is the recommended sequence for most Canadian homes:

  1. Conduct an energy audit to identify air leaks and insulation gaps before spending anything on materials.
  2. Seal air leaks first around electrical outlets, plumbing penetrations, attic hatches, and window frames. Air sealing costs very little but delivers outsized returns.
  3. Insulate the attic to the recommended R-value for your climate zone. This is almost always the highest-impact single upgrade.
  4. Address walls and floors, particularly above unheated garages or crawl spaces.
  5. Insulate refrigerant lines during any installation or repair work. Insulating pipes during install or repair cuts energy losses by 10 to 20% and prevents condensation from forming on suction lines in summer.

For pipe insulation specifically, closed-cell foam with an R-value of 3.5 to 4.0 per inch is the standard choice. It resists moisture, does not compress easily, and holds up well outdoors where UV exposure is a concern.

Pro Tip: The most commonly overlooked spots in Canadian homes are the band joist (the framing between your foundation and first floor) and the area around pot lights in the ceiling below an attic. Both are notorious air leakage points that no amount of attic insulation will fix on their own.

Common mistakes to avoid:

  • Adding attic insulation without sealing penetrations first, which traps moisture and causes mould.
  • Using fibreglass batt insulation on refrigerant lines outdoors, where it absorbs moisture and loses its R-value quickly.
  • Skipping insulation on the short sections of pipe near the outdoor unit, assuming they are not worth the effort.

Pairing insulation work with a new installation or a repair visit is the most cost-effective approach. Reviewing thermal insulation guidance for your specific heat load can help you and your technician choose the right materials. Knowing how to avoid installation mistakes and following a solid heat pump maintenance checklist keeps the whole system working as intended for years.

Timing, rebates, and expert tips for homeowners

Knowing the methods, it’s vital to time your efforts for the best efficiency and financial return.

The single most important sequencing tip is this: insulate and air seal your home before you choose or install a heat pump. This is not just about efficiency. It directly affects the size of unit your home actually needs. A leaky home requires a much larger, more expensive unit. Once you tighten the envelope, a smaller, cheaper heat pump can do the same job more efficiently. Insulating and air sealing before installation also positions you for right-sizing and maximises your eligibility for rebates.

Canadian rebate programmes, including the Canada Greener Homes Grant and various provincial incentives, often require a pre- and post-retrofit energy audit. Completing insulation work before your heat pump installation means both upgrades can be captured in a single audit cycle, simplifying paperwork and maximising your total rebate amount.

Pro Tip: Book your energy audit at least four to six weeks before your planned installation date. Audit wait times have grown across most Canadian provinces, and rushing this step often means missing rebate deadlines or installing an oversized unit.

Key timing and rebate tips:

  • Complete the pre-retrofit audit before any work begins to establish your baseline.
  • Prioritise attic insulation and air sealing first, as these carry the highest rebate values in most programmes.
  • Ask your contractor whether they are registered with your provincial rebate programme before signing anything.
  • Check energy audit advice from certified advisers to understand what documentation you will need.

One nuance that most guides skip: even a high-end heat pump will operate at higher flow temperatures in a poorly insulated home, which directly reduces its COP. A system rated at COP 4 in a tight home might deliver COP 2.5 in a draughty one. That gap costs you real money every month. Reviewing heat pump replacement guidance and a solid replacement checklist helps ensure you are not making an expensive upgrade into a disappointing one.

Our perspective: The overlooked power of insulation in real-world installations

After exploring the process, here is what most guides miss and what we have learned the hard way.

In our experience with heat pump installations across Canadian homes, the most common source of disappointment is not a faulty unit or a bad brand. It is sequencing. Homeowners install first and insulate later, or skip the audit entirely because it feels like an extra step. The result is a heat pump that runs constantly, delivers lukewarm comfort, and costs nearly as much to operate as the old furnace it replaced.

Here is the uncomfortable truth: a premium heat pump in a leaky home will almost always underperform a mid-range unit in a well-sealed one. The appliance gets the blame, but the building is the real culprit. We have seen this pattern repeatedly, and it is entirely avoidable.

The fix is not complicated. Treat insulation and air sealing as the foundation, not the finishing touch. Revisiting common installation mistakes shows that skipping this step is by far the most expensive error homeowners make. Getting the sequence right costs less, qualifies you for more rebates, and actually delivers the comfort and savings you were promised.

Get efficiency right: Insulation and expert heat pump service

Ready to put this knowledge to work in your home? Here is how to ensure professional results.

Understanding insulation is one thing. Having it done correctly, in the right sequence, by technicians who know how heat pumps actually behave in Canadian winters, is another entirely.

https://coolfix.ca

At CoolFix, we combine installation best practices with hands-on knowledge of what makes or breaks real-world efficiency. Whether you need an assessment, pipe insulation during a repair visit, or a full appliance repair service before your next upgrade, our team can help you avoid the costly mistakes that leave so many homeowners frustrated. If you are planning a new system, our replacement tutorial walks you through every step. Book a consultation and get it right the first time.

Frequently asked questions

What is the most important area to insulate for heat pump efficiency?

The attic and any areas where air can leak should be your top priorities. Attic insulation and air sealing alone can deliver 15 to 25% savings on heating and cooling costs.

Can I install a heat pump before insulating my home?

You can, but your system will work harder and cost more to run. Insulating and sealing first allows for proper right-sizing and maximises your rebate eligibility.

Does pipe insulation really make a difference with heat pumps?

Absolutely. Insulating refrigerant lines can reduce energy losses by 10 to 20% and prevents condensation from forming on suction lines during warm weather.

Are there financial rebates for insulation and heat pump upgrades in Canada?

Many regions offer rebates when insulation and heat pump installations are planned together. Completing insulation before installation positions you to capture the maximum available incentive in a single audit cycle.

What kind of insulation is used on heat pump pipes?

Closed-cell foam with R-3.5 to 4.0 per inch is the standard choice for refrigerant pipe insulation because it resists moisture and holds its R-value outdoors.
